Foldable washbasin_ EconoxMix1.2 (without mixer or soap dish)
The foldable basin version (Econox1.2) is intended for use in several areas.
Ideal for caravans, camper vans, boats, apartments, showers, toilets, patios, people with reduced mobility, it offers a host of advantages and features that go well beyond existing products. Space saving, aesthetics, ease of use and assembly, comfort, maintenance, choice of fittings as well as that of installation, wall-mounted or recessed, and thanks to its reduced weight and its low thickness, it can be installed in a 7cm partition, and can be suitable for receiving all kinds of waterproof decorative coverings for optimal customization.
Choice of faucets
- Mounting hole: diameter 32.5mm
- Do not exceed the total height of 240 mm
- The spout must pivot from left to right (180°).
- The handle should not rotate backwards.
- Spout depth should not exceed 160mm.
Technical details
- Material: 304 stainless steel, 1.2mm.
- Gloss interior finish
- FinishingShiny edges
- Brushed exterior finish.
- Raw finish invisible sides
- Total weight: 3.8 kg.
- Removable basin.
- Removable mixer support.
- Curved funnel bottom,
- Waterproof seal -40°C+90°C
- Self-positioning in folded mode.
- Stainless steel drain outlet, 1''1/4 adabtable for mini or flexible siphon in Ø 32 mm
- Product size:
L: 450mm
H: 400mm (in closed position) + 30mm connection outlet.
P: 360mm (in open position)

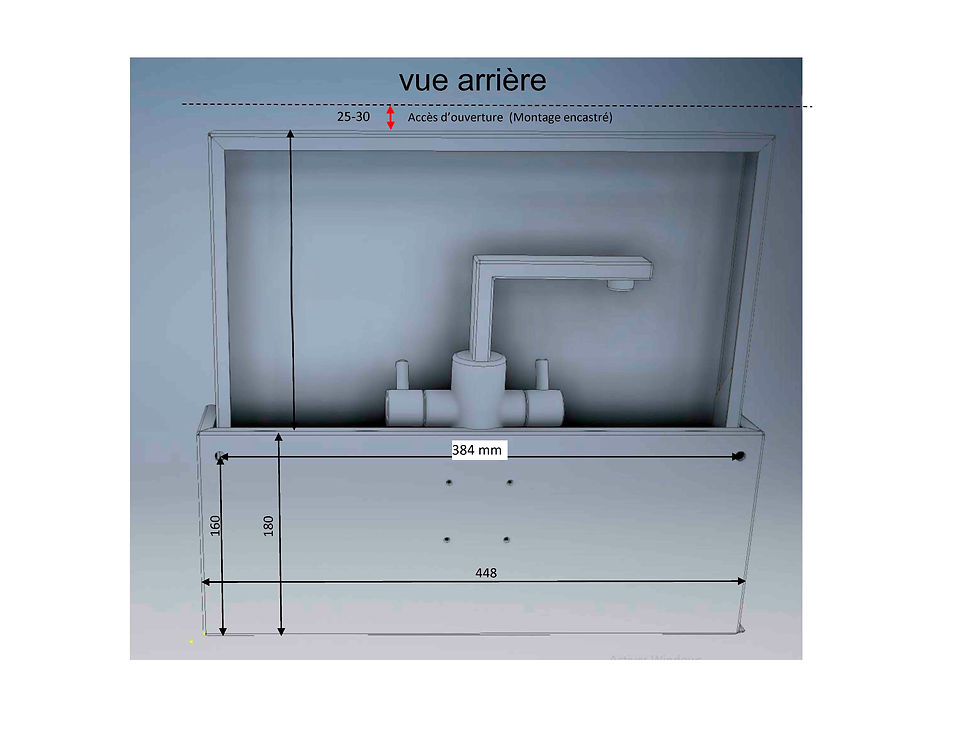

P: 68 mm (in closed position) + hinge (8) mm, [hinge H: 25 mm, (See attached image)]
Dimensions
- Longueur (L) : 450 mm
- Hauteur (H) : 410 mm (en position fermée) + 30 mm pour le raccordement inférieur
- Profondeur (P) :
- 360 mm (en position ouverte)
- 68 mm (en position fermée)
- Dépassement de la charnière : 8 mm
